52 or 82 mm
Sandwich panel
What sets it apart
A fixed sandwich panel roof, insulated from heat, cold and rain.

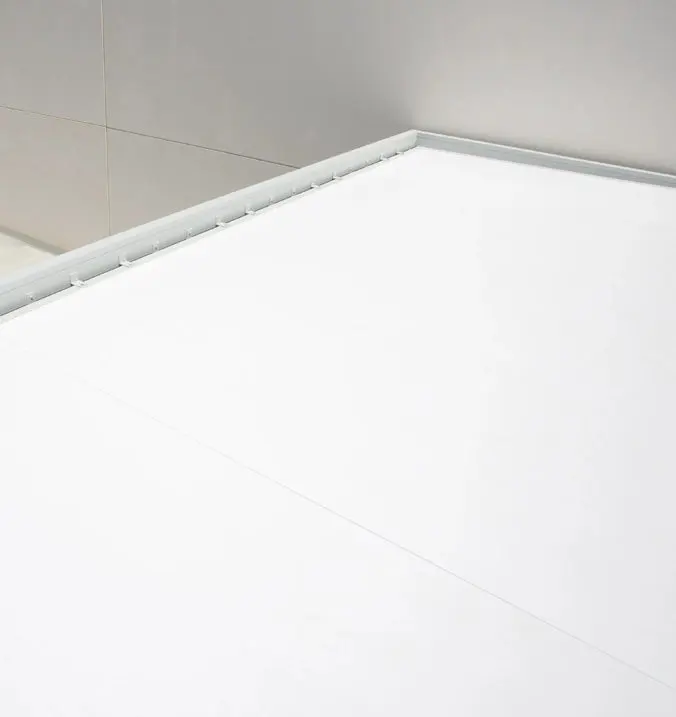

Aluminium sandwich panel with an extruded polystyrene core, in 52 or 82 mm. It keeps out heat and cold, muffles noise and lets no rain through.
How it works
Parking for the car
Porches and terraces covered all year
Sandwich panel
Pillars
Beam
Strips all around the frame or spotlights, dimmable and in the colour you choose.
Sizes, colours and extras, all in one place.
| Module up to | 7,200 × 4,700 mm, with 4 pillars |
|---|---|
| Double module | Up to 7,200 × 7,200 mm |
| Roof | Aluminium sandwich panel, 52 or 82 mm |
| Core | Extruded polystyrene |
| Panel faces | 0.8 mm coated aluminium |
| Thermal insulation | U = 0.66 W/m²K (52 mm) or 0.42 W/m²K (82 mm) |
| Reaction to fire | Class A1 (UNE-EN 13501-1) |
| Panel finish | Matt white on both sides |
| Pillars | 149.5 × 149.5 mm |
| Beam | 264 × 150 mm |
| Drainage | Through the pillars and the perimeter |
| Structure | Aluminium, no visible screws |
| Finish | Qualicoat Seaside certified coating |
| Warranty | 10 years on the structure, 5 years on the panel |
Standard RAL colours, with a finish that resists sea air.
The roof panel is matt white on both sides. Other RAL colours on request.
Pick what interests you. We carry your choice into the quote request.
No extras chosen
Every pergola is made to measure, so the price depends on your space. The quote is free.
Request a quote for the MenorcaFree quote10-year structural warranty
