Closed
Raining? The slats close and water runs through a hidden gutter down the pillars.
What sets it apart
Covers up to 11.50 m in a single module and opens its slats by zones.
With four pillars, one module goes up to 7.20 × 4.70 m. With recessed pillars, up to 11.50 m. And the slats open by zones: shade over the table, open sky over the lounge.
How it works
The rain sensor and a remote control are included: the slats close by themselves when it starts to rain.
Large spaces, without pillars in the middle
Opening just one zone at a time
Raining? The slats close and water runs through a hidden gutter down the pillars.
Warm air escapes and the space ventilates, still in the shade.

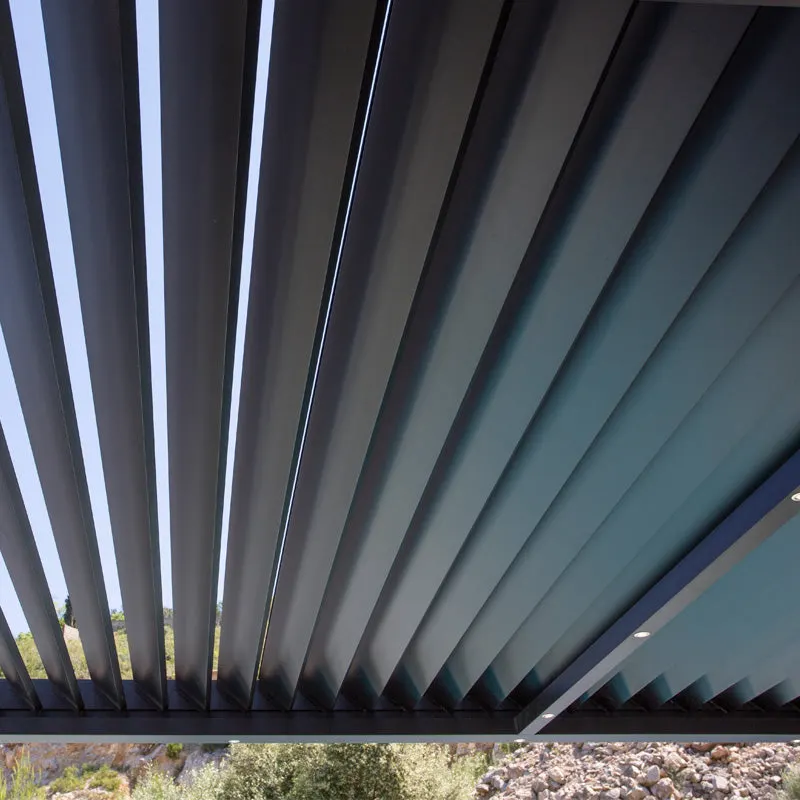

Light comes in. The slats open up to 145°.
Strips all around the frame or spotlights, dimmable and in the colour you choose.
Speakers built into the structure.
Sizes, colours and extras, all in one place.
| Module with 4 pillars | 7,200 × 4,700 mm |
|---|---|
| Module with recessed pillars | 11,500 × 4,700 mm |
| Double module | Up to 7,200 × 7,200 mm, with 4 pillars |
| Pillars | 149.5 × 149.5 mm |
| Beam | 264 × 150 mm |
| Slat rotation | 0 to 145° |
| Slat | 190 mm, flat underside |
| Maximum height | 3,000 mm |
| Wind resistance | 1.35 kN/m² (169.4 km/h), class 6 |
| Snow load | 1,050 N/m² (107 kg/m²) |
| Zone control | Yes |
| Motor | 24 V DC, hidden in the beam |
| Structure | 6063 T5 aluminium, no visible screws |
| Finish | Qualicoat Seaside certified coating |
| Drainage | Integrated: water exits through the pillars |
| Warranty | 10 years on the structure, 3 years on the electronics |
Standard RAL colours, with a finish that resists sea air.
Other RAL colours on request.
Pick what interests you. We carry your choice into the quote request.
No extras chosen
With the slats closed, the roof is watertight, tested to UNE-EN 1873. Water runs into a hidden gutter and down inside the pillars. The rain sensor is included: the slats close by themselves.
The Altea has been tested up to 169.4 km/h, class 6. With the wind sensor, the slats open to take pressure off the structure.
No. The pergola is fixed to the floor and installed without building work. Some municipalities may require a licence: we check that with you.
Yes. The coating has Qualicoat Seaside certification, made for salty air.
In most cases, yes. It depends on the extra and the installation, so we check compatibility first.
Every pergola is made to measure, so the price depends on your space. The quote is free.
Request a quote for the AlteaFree quote10-year structural warranty
